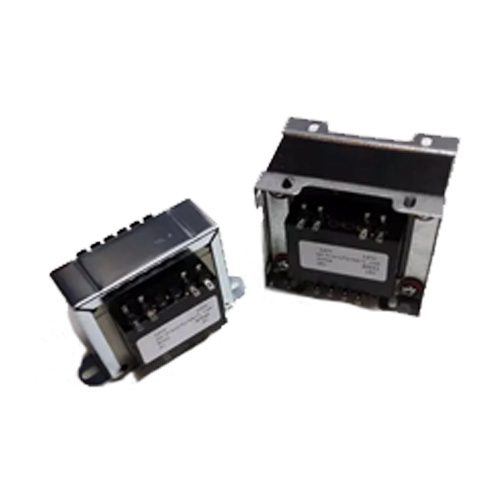

Chassis Mounting Transformers

Name: Chassis Mounting Transformers
SKU: 1189
Price: 1.50 GBP
Availability: InStock

Other Transformers

We can provide custom designs to meet your specifications. Competitively priced. 100% electrical and safety tested. Special designs are readily available on short lead times. For example; thermal fuses, additional windings, etc. Please contact us for further details and with any enquiries you may have. Modular Switching Power Supplies) | DC DC Converters | DC to AC Power Inverters AM Transformers are leading suppliers of 3 phase transformers in the UK. Please feel free to give us a call for detailed information on any of our products

Voltage Power

Clear

Add to quote

Specification

Voltage Power	6 VA, 12 VA, 15 VA, 20 VA, 25 VA, 50 VA, 75 VA, 100 VA, 200 VA, Custom

12VA
DESCRIPTION : 12VA Chassis Mounting Transformer
PART NUMBERS : EI510, EI511, EI512, EI513, EI514
PRIMARY : 0 – 120V, 0 – 120V
SECONDARY : 6 +6V, 9 + 9V, 12 + 12V, 15 + 15V, 20 + 20V Insulation Test : 3750V Regulation : 16% Temperature range : -10 to 60 Deg C Dimensions : 55 x 41 x 46mm Standards : Designed to meet the insulation requirements of EN60742, VDE0551 and conforms with the provisions of the Low Voltage Directive of the Council of the European Communities of 19 Feb 1973

200VA
DESCRIPTION : 200VA Chassis Mounting Transformer
PART NUMBERS : EU560, EU561, EU562, EU563, EU564
PRIMARY : 0 – 120V, 0 – 120V
SECONDARY : 6 +6V, 9 + 9V, 12 + 12V, 15 + 15V, 20 + 20V Insulation Test : 3750V Regulation : 5% Temperature range : -10 to 60 Deg C Dimensions : 101 x 85 x 85mm Standards : Designed to meet the insulation requirements of EN60742, VDE0551 and conforms with the provisions of the Low Voltage Directive of the Council of the European Communities of 19 Feb 1973

20VA
DESCRIPTION : 20VA Chassis Mounting Transformer
PART NUMBERS : EM520, EM521, EM522, EM523, EM524, EM525
PRIMARY : 230V
SECONDARY : 6V, 9V, 12V, 15V, 18V, 24V Insulation Test : 3750V Regulation : 17% Temperature range : -10 to 60 Deg C Dimensions : 60 x 46 x 50mm Standards : Designed to meet the insulation requirements of EN60742, VDE0551 and conforms with the provisions of the Low Voltage Directive of the Council of the European Communities of 19 Feb 1973.

50VA
DESCRIPTION : 50VA Chassis Mounting Transformer
PART NUMBERS : EP540, EP541, EP542, EP543, EP544
PRIMARY : 0 – 120V, 0 – 120V
SECONDARY : 6 +6V, 9 + 9V, 12 + 12V, 15 + 15V, 20 + 20V Insulation Test : 3750V Regulation : 9% Temperature range : -10 to 60 Deg C Dimensions : 79 x 58 x 65mm Standards : Designed to meet the insulation requirements of EN60742, VDE0551 and conforms with the provisions of the Low Voltage Directive of the Council of the European Communities of 19 Feb 1973

25VA
DESCRIPTION : 25VA Chassis Mounting Transformer
PART NUMBERS : EN530, EN531, EN532, EN533, EN534
PRIMARY : 0 – 120V, 0 – 120V
SECONDARY : 6 +6V, 9 + 9V, 12 + 12V, 15 + 15V, 20 + 20V Insulation Test : 3750V Regulation : 10% Temperature range : -10 to 60 Deg C Dimensions : 69 x 52 x 58mm Standards : Designed to meet the insulation requirements of EN60742, VDE0551 and conforms with the provisions of the Low Voltage Directive of the Council of the European Communities of 19 Feb 1973.

100VA
DESCRIPTION : 100VA Chassis Mounting Transformer
PART NUMBERS : ER550, ER551, ER552, ER553, ER554
PRIMARY : 0 – 120V, 0 – 120V
SECONDARY : 6 +6V, 9 + 9V, 12 + 12V, 15 + 15V, 20 + 20V Insulation Test : 3750V Regulation : 9% Temperature range : -10 to 60 Deg C Dimensions : 89 x 75 x 65mm Standards : Designed to meet the insulation requirements of EN60742, VDE0551 and conforms with the provisions of the Low Voltage Directive of the Council of the European Communities of 19 Feb 1973
